CKG Lower Minelab Equinox 600/800 Shaft

CKG Lower Minelab Equinox 600/800 Shaft

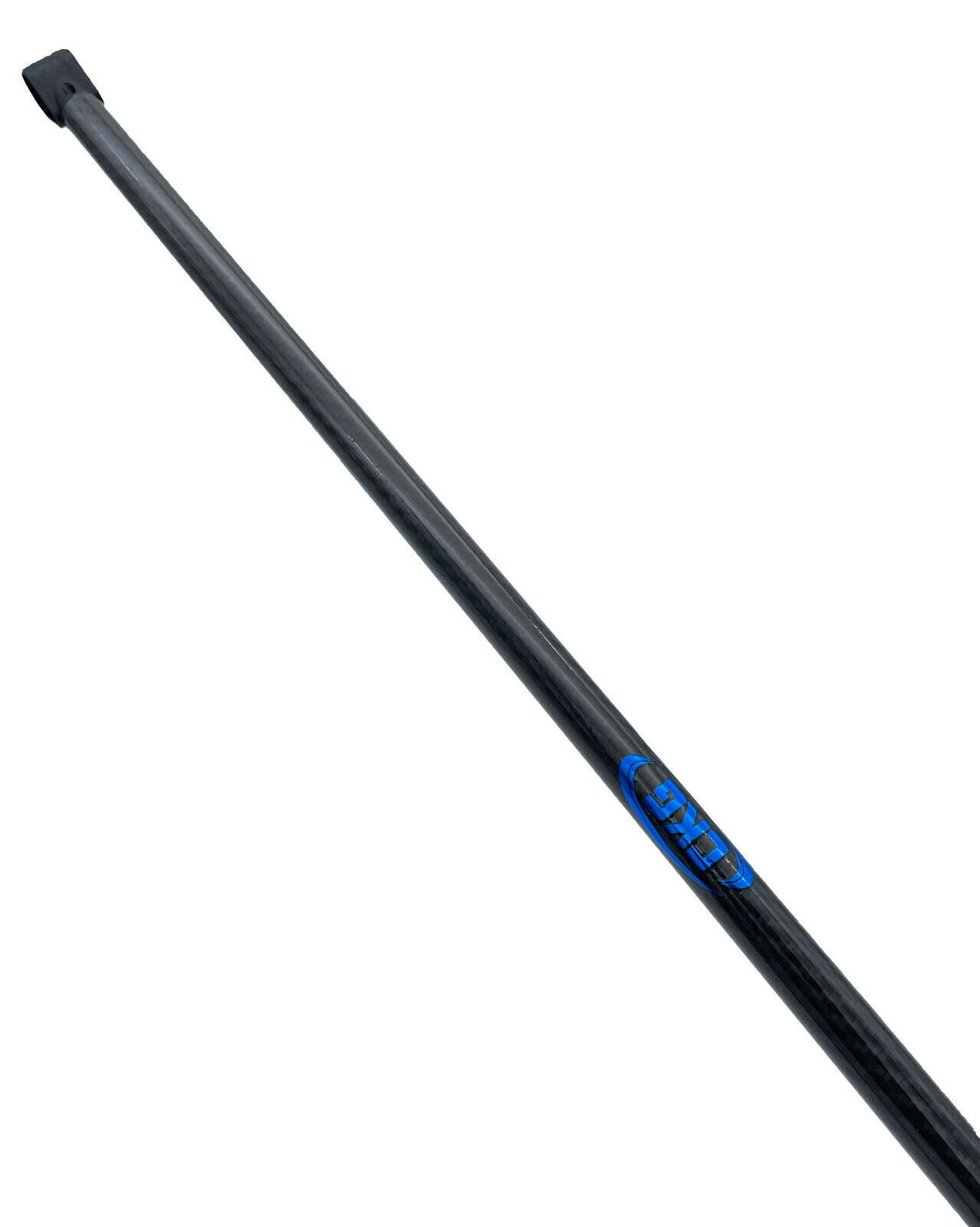

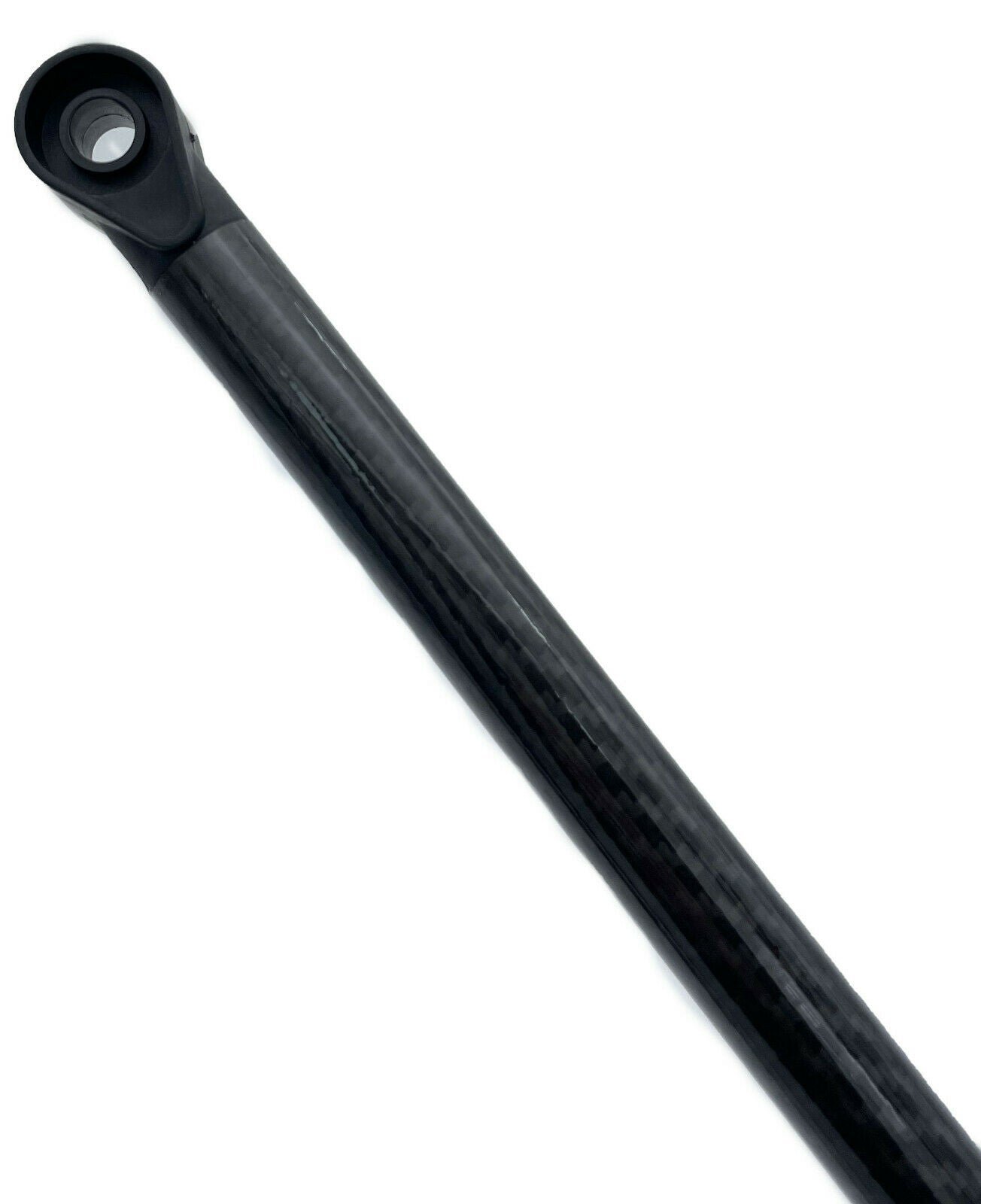

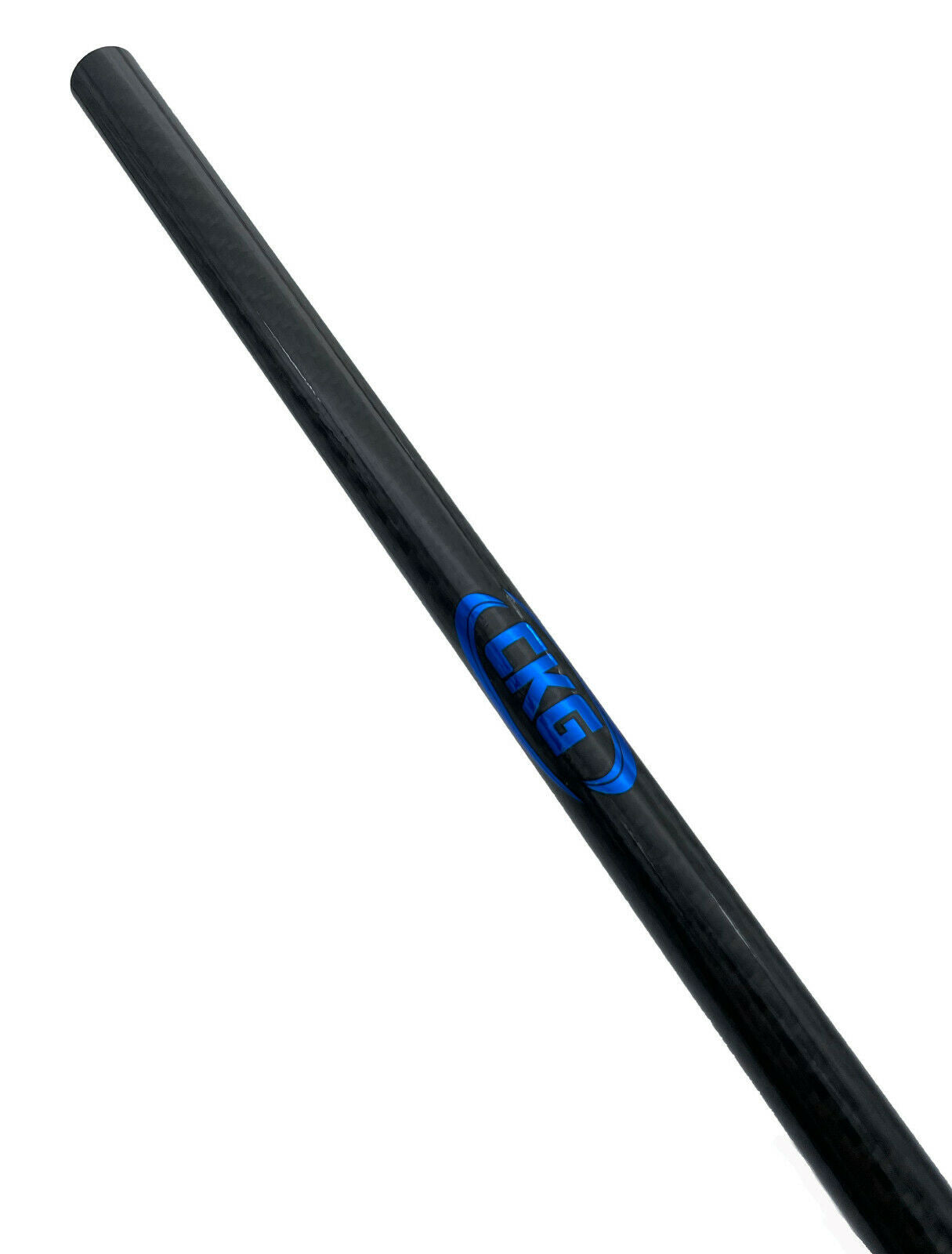

The CKG Lower Minelab Equinox 600/800 Shaft is a lightweight carbon fiber lower rod replacement designed for Minelab Equinox 600 and 800 detectors. Built from rigid 3K carbon fiber, it reduces lower-shaft flex, improves coil stability, and lowers swing fatigue during long hunts in wet sand, surf, and mixed terrain.

Key Features

• compatible with Minelab Equinox 600 and 800
• 3K carbon fiber construction
• lightweight 24" lower shaft
• reduced flex during sweeping
• corrosion-resistant for saltwater environments
• improved coil stability
• tip-light swing feel
• compatible with existing factory upper shaft and coil

Why Upgrade the Lower Shaft

The lower shaft absorbs most of the stress during repetitive sweeping and coil contact with wet sand, shells, and uneven terrain.

A stiffer carbon fiber lower rod helps:

• reduce coil wobble;
• improve sweep stability;
• reduce false responses from shaft flex;
• improve target repeatability;
• lower shoulder and wrist fatigue.

The lighter tip weight also improves balance during long beach sessions.

Beach and Wet Sand Performance

The rigid carbon construction performs especially well in:

• wet sand;
• surf line hunting;
• shelly beaches;
• silt and clay conditions;
• low-and-slow beach sweeping.

Reduced flex helps maintain a flatter coil plane during each pass, improving consistency near the ground surface.

Installation

1. Remove existing lower shaft

Detach the coil bolt and slide off the original rod.

1. Install the coil

Attach the coil to the new CKG lower shaft using your existing hardware.

1. Connect to upper shaft

Insert the lower rod into the factory upper shaft and lock it in place.

1. Route the cable

Wrap the coil cable in a loose spiral without over-tightening near the coil.

1. Adjust for balance

Set your preferred sweep height and test several swings before hunting.

Specifications

• Compatibility: Minelab Equinox 600 / 800
• Material: 3K carbon fiber
• Length: 24 inches
• Corrosion resistance: saltwater-safe carbon construction
• Use: beach, wet sand, surf, silt, mixed terrain

Best Fit For

Recommended for:

• beach detectorists;
• surf hunters;
• wet sand users;
• long-session detecting;
• users wanting reduced swing fatigue.

May not be necessary for:

• short park hunts;
• casual turf detecting;
• Equinox 700 or 900 owners.

Buying Notes

This lower shaft is designed as a direct lightweight upgrade without replacing the full detector rod system. It improves rigidity, reduces swing fatigue, and performs especially well in saltwater beach environments where lower-shaft flex becomes more noticeable over time.
